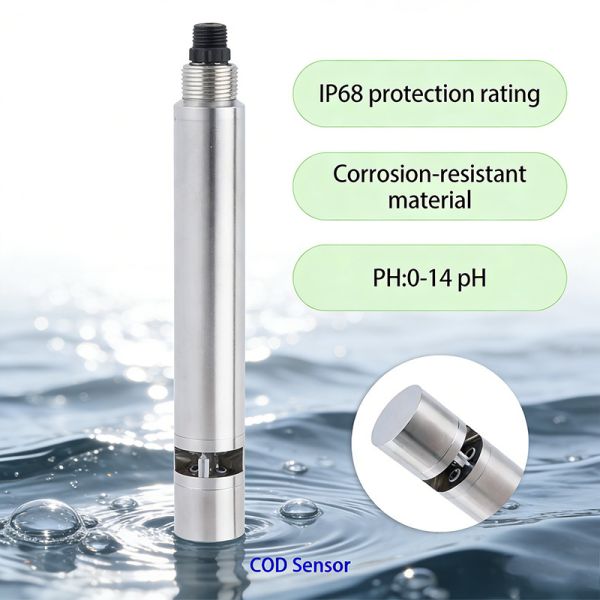

Digital COD Turbidity Temperature Sensor IP68 316L Stainless Steel, Used for Industrial Water Quality Monitoring
Product Introduction:
This RS485 water quality COD sensor is designed for real-time online monitoring of chemical oxygen demand in water bodies, and is widely used in industrial wastewater, surface water, aquaculture, and environmental monitoring fields. The product adopts advanced optical measurement principles, without the need for reagents or secondary pollution, and can directly output COD values. With its standard RS485 interface and Modbus RTU protocol, it can easily connect to various industrial control systems and achieve unmanned intelligent water quality monitoring.
Core Advantage:
1. Reagent free optical method, green and low maintenance
Using UV absorption method for measurement, no chemical reagents are required and no secondary pollution is generated. The sensor operates under long-term immersion, with a long maintenance cycle, significantly reducing labor and consumable costs.
2. RS485 digital output, convenient system integration
Standard Modbus RTU protocol, plug and play, directly communicates with PLC, DTU, touch screen and other devices without the need for additional conversion modules, supporting multi-point network monitoring.
3. High precision and temperature compensation
Built in automatic temperature compensation algorithm to maintain stable measurement accuracy at different water temperatures. Rapid response, real-time reflection of water quality changes, measurement range covering 0-500mg/L (customizable).
4. Durable and adaptable to harsh environments
The shell is made of corrosion-resistant materials, with an IP68 protection level, and can be immersed in rivers, water pools, or pipelines for a long time. Surface anti adhesion treatment to reduce biofouling, combined with optional automatic cleaning brush head, further extending maintenance intervals.
5. Plug and play, easy to operate
The calibration has been completed at the factory, and it can work on site after being powered on. The supporting upper computer software supports parameter configuration, data reading, and one click calibration, truly achieving "installation, connection, and accurate reading".
RS485 Water Quality COD Sensor:
| Model |
ZW-COD-PR |
| Measuring principle |
Dual wavelength ultraviolet absorption method |
| Scale range |
COD |
Turbidity |
| 0～200mg/L equiv. KHP |
0～200NTU |
| 0～500mg/L equiv. KHP |
0～400NTU |
| 0～1500mg/L equiv. KHP |
0～1000NTU |
| Precision |
0～200.0 mg/L
0～200.0 NTU
0～500.0 mg/L
0～200.0 NTU
|
±5%；±0.3℃ |
|
0～1500.0 mg/L
0～1000.0 NTU
|
0～1000: ±10%,
1000~1500:±5%；±0.3℃
|
| Resolution |
0.1 |
| Response Time |
＜30s |
| BOD |
150mg/L, 450mg/L,1350mg/L |
| TOC |
100mg/L, 300mg/L ,900mg/L |
| Minimum detection limit |
0.2mg/L(0-200mg/L) |
| 0.4mg/L(0-500mg/L) |
| Calibration method |
Two-point calibration |
| Cleaning method |
Self-cleaning brush |
| Temperature compensation |
Automatic temperature compensation (Pt1000) |
| Output method |
RS-485 ( Modbus/RTU )&4-20mA(Optional) |
| Power supply |
12～24VDC |
| Power consumption |
0.4W@12V(work)2W@12V(clean) |
| Working conditions |
0～45℃,≤0.2MPa |
| Storage temperature |
-5～65℃ |
| Protection level |
IP68 |
| Installation method |
Immersion installation;3/4 NPT
|
| Sensor housing material |
316L stainless steel |
Product Display:
Application:
- Industrial wastewater discharge monitoring: Real time monitoring of COD values at the discharge outlets of chemical, pharmaceutical, printing and dyeing enterprises to assist in environmental compliance.
- Surface water and river management: deployed in rivers, lakes, and reservoirs to dynamically assess water quality changes and warn of pollution events.
- Aquaculture water quality management: Control organic pollution in aquaculture water bodies to ensure the healthy growth of aquatic organisms.
- Urban sewage treatment: Connect with PLC system to achieve online continuous analysis of COD in inflow and outflow.
Why RS485 for Water Quality COD Monitoring?
Industrial-Grade & Stable Data Transmission: RS485 delivers robust anti-interference performance for real-time, reliable hardness data transmission in harsh environments (e.g., industrial boilers, municipal water supply), ensuring accurate monitoring.
Easy Integration & Scalability:Supports multi-node networking, seamlessly integrates with mainstream PLC/RTU systems, enabling flexible deployment and reducing system integration costs and maintenance complexity.
Production Process:
FAQ:
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
Why choose us:
- Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
- Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
- Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
- Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
- Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
|
|
