Solar LoRaWAN Multi Parameter Water Quality Sensor
Product Introduction:
Solar LoRaWAN self-cleaning multi parameter water quality sensor - an outdoor water quality monitoring terminal that integrates solar self powered, LoRaWAN long-distance wireless transmission, automatic cleaning, and multi parameter measurement. It can simultaneously measure dissolved oxygen COD,pH,ORP, Conductivity/salinity, ammonia nitrogen, turbidity, and temperature, supporting up to 8 parameters, truly achieving "one machine for multiple uses". With 0.88W photovoltaic panels and 3400mAh lithium batteries, the battery can last for at least 3 years under the default 30 minute reporting cycle, completely freeing itself from the constraints of mains power and wiring.
Core functions:
1. Simultaneous measurement of eight parameters, covering mainstream water quality indicators
Support optional dissolved oxygen (0-20mg/L, ± 2%), COD (0-500mg/L, ± 5%), pH (0-14, ± 0.1), conductivity (0-200mS/cm, ± 1.5%), ammonia nitrogen (0-1000mg/L), turbidity (0-1000NTU), ORP (± 1500mV), and temperature (± 0.3 ℃) to meet the monitoring needs of multiple scenarios such as surface water, sewage, and drinking water.
2. Automatic cleaning system, significantly reducing maintenance workload
Built in self-cleaning brush can automatically clean the sensor surface at set intervals (6-6000 minutes) and cycles, effectively preventing microbial adhesion, ensuring data accuracy, and extending manual maintenance cycles.
3. Solar energy+LoRaWAN, worry free outdoor network
0.88W photovoltaic panel combined with 3.7V/3400mAh battery, with a battery life of ≥ 3 years (it is not recommended to report the cycle too short). LoRaWAN supports global frequency bands such as CN470/EU868/US915, Class A/C mode, communication distance can reach several kilometers, and data is transmitted directly to the cloud.
4. IP68 fully waterproof, sturdy and durable
The main body of the multi parameter sensor is made of POM+316L material, with a protection level of IP68, a working temperature of 0-40 ℃, a pressure resistance of 0.2MPa, and can operate stably submerged in water for a long time.
Solar LoRaWAN parameters:
| Power Supply |
Solar Powered + Li-ion Battery
(0.88W solar panel+3.7V/3400 mAh Li-ion battery)
|
| LW119S Weight |
230g |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/
KR920/AS923-1&2&3&4
|
| Mode |
OTAA Class A(Default )/C |
| Reporting cycle |
30min(Default ) |
| Battery Life |
≥3 years(Based on normal use conditions)
Note: Due to the high power consumption of multi-parameter sensor, it is not recommended to use short cycle data reporting.
|
| Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information
(Reference)
|
AppEUI:331341E186891989
DevEUI:aaaa202404150001
AppKey:5572404c696e6b4c6f52613230313823
MAC Version:LoRaWAN 1.0.3
|
Optional Water quality multi-parameter sensor:
| Sensor Type |
Parameter |
Range/Accuracy |
| Dissolved Oxygen Sensor |
Measurement Range |
0～20mg/L |
| Accuracy |
±2% |
| Resolution |
0.01mg/L |
| Turbidity Sensor |
Measurement Range |
0～200NTU；0～1000NTU |
| Accuracy |
±3% or ±2NTU (0～200NTU)；
±5% or ±3NTU (0～1000NTU)
|
| Resolution |
0.1NTU |
| Conductivity/Salinity Sensor |
Measurement Range |
0～5000μS/cm；0～200mS/cm；0～70PSU |
| Resolution |
1μS/cm (0～5000μS/cm)；
0.1mS/cm (0～200mS/cm)；
0.1PSU (0～70PSU)
|
| Accuracy |
±1.5% |
| COD Sensor |
Measurement Range (COD) |
0～200mg/L (equivalent to KHP)；
0～500mg/L (equivalent to KHP)
|
| Measurement Range (Turbidity) |
0～100NTU；0～200NTU |
| COD Accuracy |
±5% |
| COD Resolution |
0.1mg/L |
| Turbidity Accuracy |
±5% |
| Turbidity Resolution |
0.1NTU |
| pH Sensor |
Measurement Range |
0～14 |
| Accuracy |
±0.1 |
| Resolution |
0.01 |
| ORP Sensor |
Measurement Range |
-1500mV～+1500mV |
| Accuracy |
±6mV |
| Resolution |
1mV |
| Ammonia Nitrogen Sensor |
Measurement Range |
0~100mg/L or 0~1000mg/L |
| Accuracy |
±10% of reading or ±1mg/L (whichever is larger) |
| Resolution |
0.01mg/L or 0.1mg/L |
| Temperature Sensor |
Measurement Range |
0～50℃ |
| Accuracy |
±0.3℃ |
| Resolution |
0.1℃ |
| Chloride ion sensor |
Measurement Range |
0~3500.0 mg/L (default)
0~35000 mg/L
|
| Accuracy |
±5% of reading; ±0.3℃ |
| Resolution |
0.1mg/L,0.1℃ 1mg/L,0.1℃ |
| Residual Chlorine |
Measurement Range |
0～2.000mg/L(HClO) |
| Accuracy |
±5% or ±0.05mg/L,±0.3℃ |
| Resolution |
0.001 |
NOTE:You can customize combinations. For other sensor requirements, contact our sales team for a customized quote.

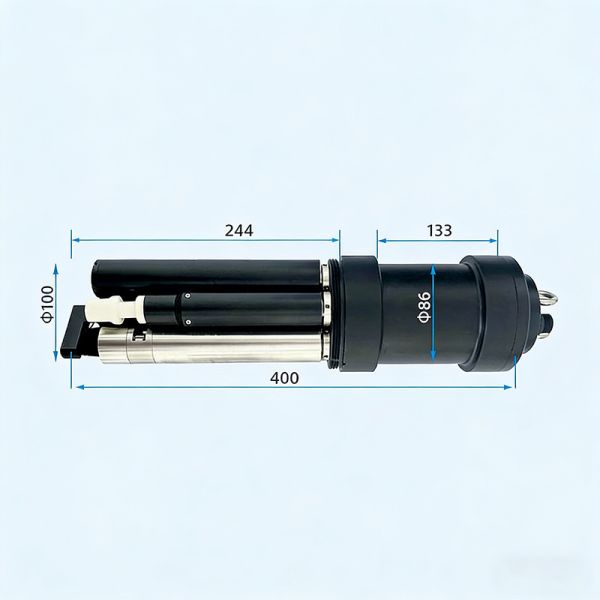

Product Display:
Quality assurance:
1.Each production process is inspected by dedicated personnel, with strict controls at every stage to ensure stable and reliable product quality.
2.Professional engineers oversee the entire quality inspection and control process, enabling closed-loop management from raw material sourcing to finished product.
3.The product has obtained multiple authoritative certifications, including CE, RoHS, and metrological certification, complying with stringent domestic and international standards.
Application:
- Surface Water Monitoring: Online Analysis of Water Quality in Rivers, Lakes, and Reservoirs
- Drinking water source: Multi parameter monitoring of water source and water treatment plant
- Aquaculture: dissolved oxygen pH, Real time monitoring of key indicators such as ammonia nitrogen
- Industrial wastewater and sewage treatment: control of discharge outlets and treatment process
Customer on-site examples:
